PM-HF
Pressure/Vacuum Relief Valve Pilot-operated diaphragm valve
- controlled by corrosion-resistant pilot valve
- small amount fl uid stored in the tank released into the atmosphere by the pilot when the valve opens
- max. 10% Technology for minimum pressure increase until full lift
- seals extremely tight; hence, least possible product losses and reduced impact on the environment
- set-to-operate pressure close to the opening pressure; hence, best possible pressure management of the system.
- control diaphragm of the main valve shielded from low temperatures - Long service life
- high flow capacity
- suited for use in hazardous areas
- Field-Test-Connection on request
- Field-Test-Kit on request
Função e descrição
The PROTEGO® Type PM-HF pilot-controlled diaphragm valve is a highly developed valve for pressure and vacuum relief. Primarily used as a device for outbreathing in tanks, vessels, and process engineering equipment it also offers reliable protection from vacuum and overpressure. It prevents intake of air and unacceptable product vapor loss up to and until the set-to-operate pressure is reached. The valve can be used as an inbreathing device as well. In such an application, the main valve is directly controlled when exposed to a vacuum, i.e. it functions as a weight-loaded diaphragm valve.
The main valve is controlled by a pilot valve. The latter in turn is controlled by the tank pressure. A small amount fluid stored in the tank released into the atmosphere by the pilot when the valve opens. The set-to-operate pressure is adjusted on the pilot valve by increasing or decreasing (as appropriate) the tension of a spring.
As the working pressure rises, the closing force acting on the main valve increases, i.e. the valve's tight-sealing is enhanced until the set-to-operate pressure is reached, thus preventing leakage. Once the valve has commenced to lift it opens fully within a 10% pressure rise or the opening pressure difference and the nominal volumetric fl ow is discharged through a fully open valve. If and when this level is exceeded the pressure increase will follow the performance curve (Δp/V.curve). From set pressure to full capacity (fully open valve) the pressure increase is 100% in case of vacuum venting/inbreathing function.
Due to the sophisticated manufacturing technology, the tank pressure is maintained up to the set-to-operate pressure, with seal-tight requirements far above common standards being met. This feature is achieved through valve seats made of high-grade stainless steel with precisely ground valve pallets. Once the excess pressure is relieved or pressure below atmospheric balanced out, the valve reseats and seals tight again.

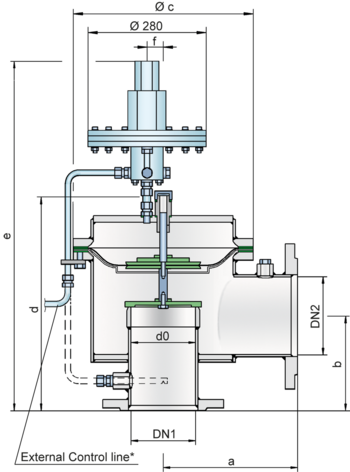

Tabela de dimensões
Para escolher o diâmetro nominal (DN), veja os diagramas de vazão nas páginas seguintes
DN1 | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 300 / 12" |
DN2 | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 350 / 14" | 400 / 16" |
a | 225 / 8.86 | 250 / 9.87 | 325 / 12.80 | 375 / 14.76 | 450 / 17.72 | 500 / 19.69 | 500 / 19.69 |
b | 150 / 5.91 | 175 / 6.89 | 225 / 8.86 | 250 / 9.84 | 270 / 10.63 | 300 / 12.81 | 325 / 12.80 |
c | 275 / 10.83 | 330 / 12.99 | 445 / 17.52 | 550 / 21.65 | 665 / 26.18 | 785 / 30.91 | 785 / 30.91 |
d | 376 / 14.80 | 429 / 16.89 | 536 / 21.10 | 607 / 23.90 | 678 / 26.69 | 796 / 31.34 | 846 / 33.31 |
e | 763 / 30.04 | 770 / 30.31 | 923 / 36.34 | 977 / 38.46 | 1052 / 41.42 | 1173 / 46.18 | 1223 / 48.15 |
f | 35 / 1.38 | 40 / 1.57 | 40 / 1.57 | 50 / 1.97 | 50 / 1.97 | 50 / 1.97 | 50 / 1.97 |
Seleção do material do corpo
Execução | A | B |
Corpo | Alumínio | Aço inoxidável |
Sedes de válvulas | Aço inoxidável | Aço inoxidável |
Vedação | KL-C-4106 | KL-C-4106 |
Proteção do diafragma principal | Aço inoxidável | Aço inoxidável |
Tubos de comando | Aço inoxidável | Aço inoxidável |
Corpo da unidade piloto | Alumínio | Alumínio / Aço inoxidável |
Diafragma piloto | FEP | FEP |
Coefficient of Discharge
DN1 | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 300 / 12" |
DN2 | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 350 / 14" | 400 / 16" |
do | 81 | 107 | 160 | 208 | 260 | 310 | 310 |
K | 0,68 | 0,68 | 0,63 | 0,59 | 0,58 | 0,54 | 0,61 |
DN2 = Size Outlet
d0 = Orifice Diameter (mm / inches)
K = Coefficient of Discharge
Tipo de conexão flangeada
EN 1092-1; Form B1 |
ASME B16.5 CL 150 R.F. |
Versão e especificação
Following designs are available:
Basic design of pressure/vacuum relief valve with a control pilot valve | PM-HF |
Additional special devices available upon request
*It is recommended thet an external control line be provided with direct connection to the tank
Ajustes de pressão
Pressão: | +10 mbar | +1034 mbar | |
+4 inch W.C. | +413.6 inch W.C. | ||
Vácuo: | -3.0 mbar | -7 mbar | |
-1.2 inch W.C. | -2.8 inch W.C. | ||
-2.2 mbar | -7 mbar | ||
-0.88 inch W.C. | -2.8 inch W.C. |
Diagrama de vazão
Este diagrama de vazão foi determinado em uma bancada de medição de vazão calibrada e certificada pela TÜV. A vazão V em m³/h se refere ao estado técnico padrão de ar, conforme ISO 6358 (20°C, 1bar). Para conversão em outras densidades e temperaturas, veja o cap. 1: Bases técnicas.
