ER-V-LP

Emergency pressure relief valve

  • patented valve pallet technology guarantees excellent tightness resulting in the lowest possible product losses and reduced environmental impact
  • 10% technology for minimum pressure increase until full lift
  • set pressure close to opening pressure for optimum pressure maintenance in the system
  • high flow efficiency
  • valve pallet is guided inside the housing to protect against harsh weather conditions
  • can be used in explosion hazardous areas
  • sturdy housing design
  • secured movable components
  • best technology for API tanks

Função e descrição

The PROTEGO® type ER-V-LP valve is a sophisticated pressure relief valve for applications in which a high flow efficiency is of the essence. It is primarily used as an emergency pressure relief valve on storage tanks, vessels, silos, and process engineering equipment. It offers reliable protection against excessive overpressure and prevents excessive product loss at pressures as high as close to the set pressure. It is designed to release particularly large quantities to prevent the vessel from rupturing in an emergency case.

The valve will start to open as soon as the set pressure is reached and only requires a 10% pressure increase or opening pressure differential until full lift. Continuous investments in and a commitment to research and development have enabled PROTEGO® to develop a new valve pallet technology for which a patent has been granted. This patented valve pallet technology enables the typical safety valve characteristics to be applied to low pressure ranges while also maintaining a low leakage rate.

Adopting this new patented valve pallet technology permits the valve to be set to just 10% below the maximum allowable working pressure of the tank and still vent the required flow.

Due to the sophisticated manufacturing technology, the tank pressure is maintained up to the set pressure, with a tightness that is far above the common standards. Once the excess pressure is released, the valve re-seats and seals tight again.

Tabela de dimensões

Para escolher o diâmetro nominal (DN), veja o diagrama de vazão da página seguinte

DN200 / 8"250 / 10"300 / 12"350 / 14"400 / 16"450 / 18"500 / 20"600 / 24"700 / 28"
a343406483533597635699813837
b378399409440455464481556571
Dimensões em mm

Seleção do material

Execução AB
Corpo Aço Aço inoxidável
Sedes de válvulas Aço inoxidável Aço inoxidável
Obturador da válvula Aço inoxidável Aço inoxidável
Vedação Aço inoxidável Aço inoxidável
Materiais especiais sob solicitação

Tipo de conexão flangeada

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.
Outras conexões sob solicitação

Versão e especificação

O obturador da válvula é calibrado por peso. Pressões de ajuste

mais altas são realizadas geralmente com alavanca (veja ER/VH, ER/V)

ou com válvula calibrada por mola (veja ER/V-F).

Pressure valve in basic design

ER-V-LP

Outros dispositivos especiais sob solicitação

Settings

DN 200 to DN 300 +3.4 mbar +40 mbar
+1.4 inch W.C. +16 inch W.C.
DN 350 to DN 700 +3.4 mbar +25 mbar
+1.4 inch W.C. +10 inch W.C.
Ajustes de pressões mais altos, veja tipo ER/V, ER/VH e ER/V-F.

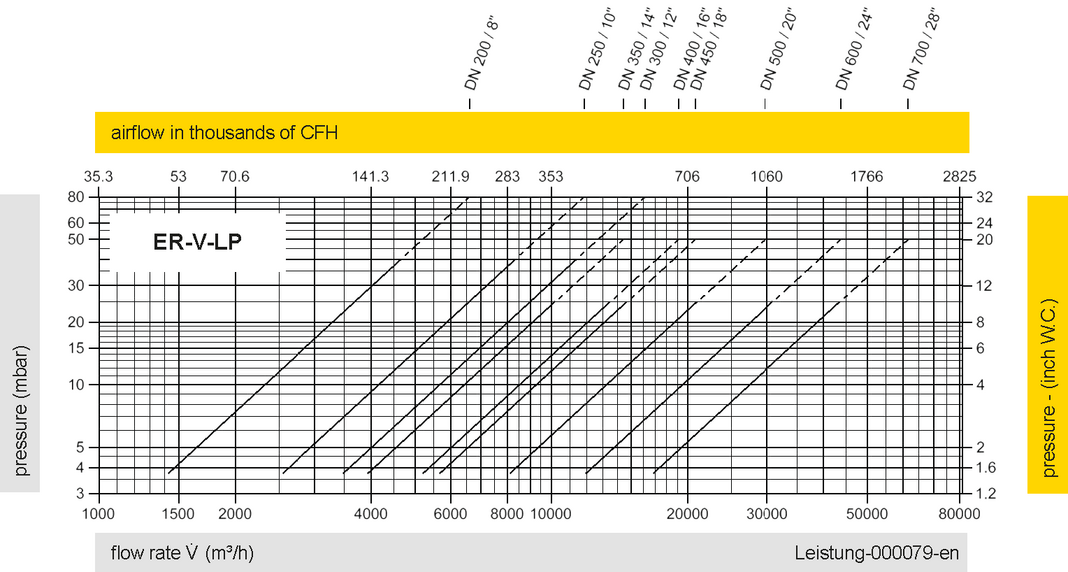

Diagrama de vazão

Este diagrama de vazão foi determinado em uma bancada de medição de vazão calibrada e certificada pela TÜV. A vazão V em m³/h se refere ao estado técnico padrão de ar, conforme ISO 6358 (20°C, 1bar). Para conversão em outras densidades e temperaturas, veja o cap. 1: Bases técnicas.
