LH/EB
Deflagration Flame Arrester, endurance burning proof, End-of-Line
- most efficient deflagration flame arrester for methane/air mixtures
- certificates for mining are available
- protection against atmospheric deflagration and endurance burning
- weather hood protects against environmental impact (i.e. weather, bird nests, etc.)
- weather hood will open and signals the impact of a flame
- fusible link is resistant against chemicals
- maintenance friendly design
Función y Descripción
The PROTEGO® LH/EB end-of-line deflagration flame arrester is used to protect process engineering apparatus and vessels which are not pressurized and process Methane/Air mixtures. The device provides protection against flame transmission through atmospheric deflagration and stabilized flames which can burn for a very long time. This device is specifically applied to vent lines of decommissioned underground mines. Other areas of application are biogas, landfill gas and sewage gas. The device is installed on suction and vent lines, with the goal to prevent flame transmission caused by endurance burning or atmospheric deflagration propagating into the vessel or plant.

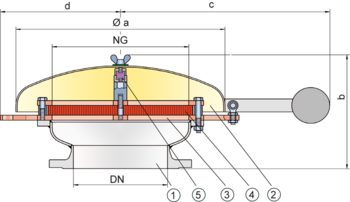

The PROTEGO® LH/EB consists of a housing (1), a weather hood (2) and the PROTEGO® flame arrester unit (3). During normal operation, the metal weather hood is in a closed position. If a flame burns on the flame arrester element surface, the fusible link (5), located in a center position, will melt and an externally located weight will move the weather hood into the open position. The PROTEGO® flame arrester unit consists of a FLAMEFILTER® (4), which is installed in a FLAMEFILTER® casing.
The PROTEGO® LH/EB series end-of-line deflagration flame arrester is available for substances for explosion group IIA1 - methane (former designation Expl.gr. I).
The standard design can be used with operating temperature of up to +60°C / 140°F.
Special certificates for mining are available and the device is type-approved according to ATEX Directive and EN ISO 16852 as well as other international standards.
Dimensiones
To select the nominal size (DN), please use the flow capacity charts on the following pages
DN | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12" | 350 / 14" | 400 / 16" |
NG | 400 / 16" | 400 / 16" | 400 / 16" | 400 / 16" | 400 / 16" | 400 / 16" |
a | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 |
b | 340 / 13.39 | 340 / 13.39 | 340 / 13.39 | 340 / 13.39 | 340 / 13.39 | 340 / 13.39 |
c | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 | 600 / 23.62 |
d | 350 / 13.78 | 350 / 13.78 | 350 / 13.78 | 350 / 13.78 | 350 / 13.78 | 350 / 13.78 |
Selección de materiales para la vivienda
Design | A | B |
Housing | Steel | Stainless Steel |
Weather hood | Steel | Stainless Steel |
Flame arrester unit | A, B | B |
Combinación de materiales para la unidad apagallamas
Design | A | B |
FLAMEFILTER® cage | Steel | Stainless Steel |
FLAMEFILTER® | Stainless Steel | Stainless Steel |
Selección del grupo de explosión
MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
> 1,14 mm | IIA1 (I)* | - |
Tipo de bridas de conexión
EN 1092-1; Form B1 |
ASME B16.5 CL 150 R.F. |
Modelo y especificación
Following designs are available:
Deflagration flame arrester, end-of-line, basic design | LH/EB |
Special designs available on request
Diagrama de flujo volumétrico
Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
